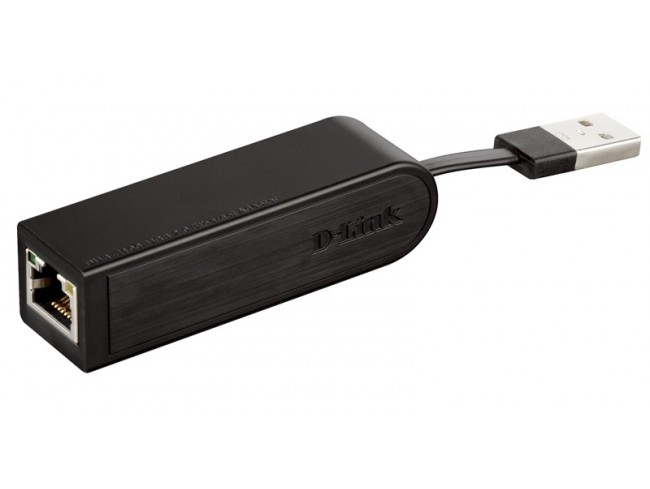

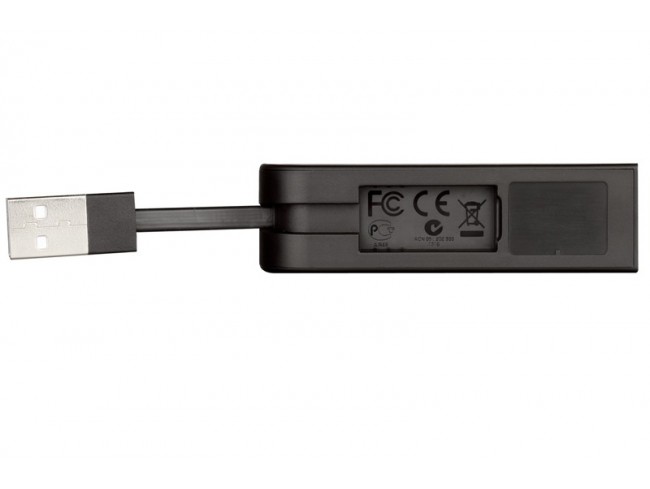

D-Link DUB-E100 Ethernet 100Mbit/s networking card

D-Link DUB-E100 Ethernet 100Mbit/s networking card

Description

The DUB-E100 USB 2.0 to Fast Ethernet network adapter provides Fast Ethernet connectivity for desktop and portable computers. Just plug the adapter into your computer’s USB port, and you will be able to connect a switch or a router to your computer using Ethernet cable.

Fast Ethernet Connectivity

The DUB-E100 network adapter can be plugged into any available USB port on your computer to enable you to connect to an Ethernet network. This adapter provides network connectivity even for the computers, that don’t have RJ-45 port. The DUB-E100 eliminates the need to open your computer to install a network card, and it also lets you keep your notebook’s expansion slot free for other uses.

Easy to Install and Use

The DUB-E100 network adapter connects to your computer’s USB port and is ready to run almost as soon as it’s plugged in. There is no need to change any confguration settings on your computer, just install the device drivers.

Energy Saving

The DUB-E100 supports an energy-saving suspend and resume function to minimize power consumption, which is especially useful for notebook users as it helps conserve battery life, allowing them to use their notebooks for a longer period. Power is provided directly by the USB bus, eliminating the need for an external AC power adapter.

General features

Interfaces

RJ-45 Ethernet port (10/100 Mbps)
USB Type-A connector

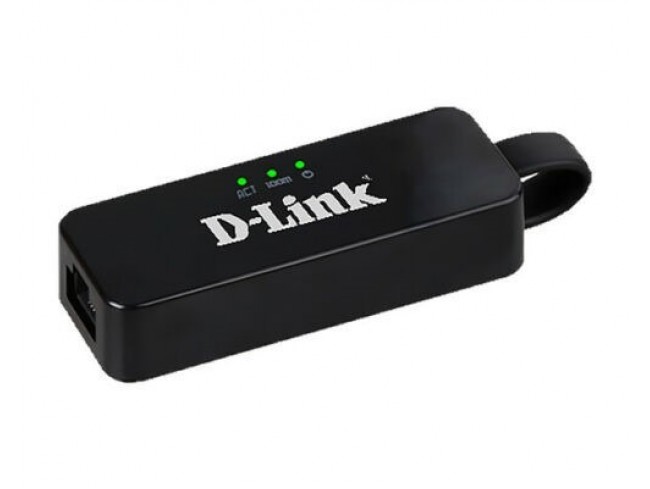

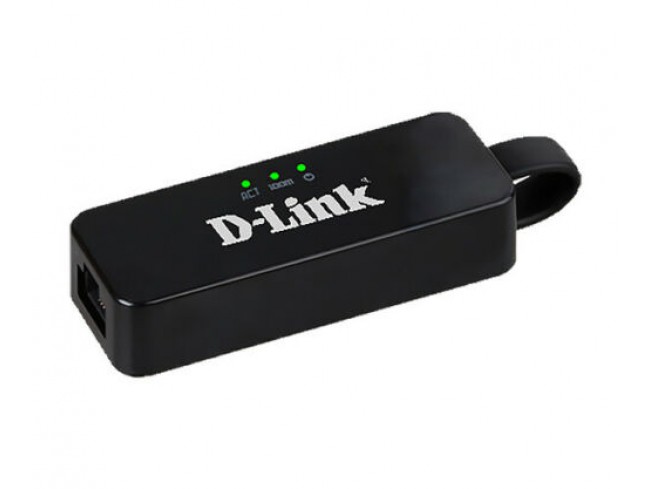

LEDs

Power
Act
100M

Standards and Functions

USB Specification Version 2.0
USB Specification Version 1.1
USB Specification Version 1.0
OHCI (Open Host Controller Interface)
EHCI (Enhanced Host Controller Interface)
IEEE 802.3 Ethernet
IEEE 802.3u 100Base-T compatible
IEEE 802.3az Energy Efficiency Ethernet
Auto MDI/MDIX
Full/half duplex for 10/100 Mbps speeds
IEEE 802.3x Flow Control in full duplex mode
Back pressure in half duplex mode
Jumbo frame
Wake-on-LAN

Power Management

Energy Saving functon reduces power usage during idle or light traffic periods

System Requirements

Operating system: Microsoft Windows 7/8.x/10, Mac OS 10.6 to 10.14, Linux

Physical Parameters

Dimensions (L x W x H)

72 х 27 х 16.5 mm

Weight

20 g

Power Supply

From USB bus

Power Consumption

165 mA, 5 V DC

Temperature

Operating: 0 to 55 °C
Storage: 0 to 80 °C

Humidity

Operating: 10% to 90% non-condensing
Storage: 5% to 90% non-condensing
