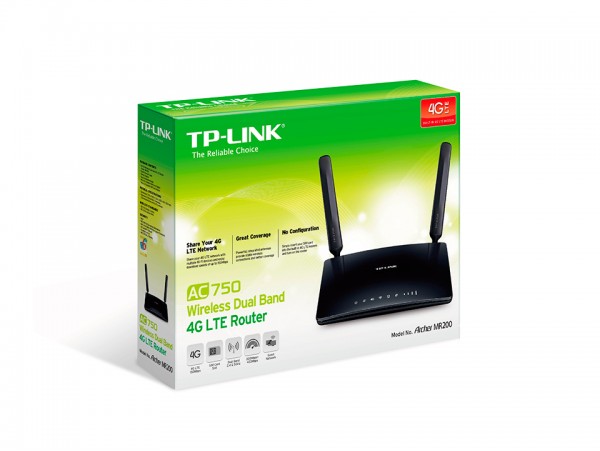

NEW TP-LINK Archer MR200 AC750 Wireless WiFi 5GHz Dual Band 3G/4G LTE SIM Router
**NEW ORIGINAL RETAIL BOX BRAND**
Comes with EU Plug
AC750 Wireless Dual Band 4G LTE RouterArcher MR200
- Shares your 4G LTE network with multiple Wi-Fi devices and enjoy download speeds of up to 150Mbps
- Powerful, integrated antennas provide stable wireless connections and better coverage
- Requires no configuration, just insert a SIM card and turn it on to enjoy a fast wireless connection
- Creates simultaneous dual band Wi-Fi networks, with maximum speeds of up to 300Mbps on the 2.4GHz band and 433Mbps on the 5GHz band
- Offers options and flexibility with the LAN/WAN port, allowing you to choose your connection type
| HARDWARE FEATURES |
| Interface |
3 10/100Mbps LAN Ports, 1 10/100Mbps LAN/WAN Port, 1 SIM Card Slot |
| Button |
WPS/Reset Button, Wireless On/Off Button, Power On/Off Button |
| Antenna |
3 Internal Wi-Fi Antennas,
2 Detachable External 4G LTE Antennas |
| External Power Supply |
12V/1A |
| Dimensions ( W x D x H ) |
7.95 x 5.55 x 1.32 in. (202 x 141 x 33.6 mm) |
| WIRELESS FEATURES |
| Wireless Standards |
IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz |
| Frequency |
2.4GHz and 5GHz |
| Signal Rate |
300Mbps at 2.4GHz, 433Mbps at 5GHz |
| Reception Sensitivity |
5GHz: 11a 54M: -74dBm
11ac HT20: -67dBm
11ac HT40: -64dBm
11ac HT80 : -60dBm
11n HT20: -71dBm
11n HT40: -70dBm
2.4G: 11g 54M: -76dBm
11n HT20: -73dBm
11n HT40: -67dBm |
| Transmit Power |
CE: <20dBm(2.4GHz), <23dBm(5GHz) |
| Wireless Functions |
Enable/Disable Wireless Radio, WDS Bridge, WMM,
Wireless Statistics |
| Wireless Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions |
| Network Type |
4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800MHz)
TDD-LTE B38/B40 (2600/2300MHz)
3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900MHz)
2G: EDGE/GPRS/GSM Quad Band (850/900/1800/1900MHz) |
| SOFTWARE FEATURES |
| Quality of Service |
Traf c Control(IP QoS) |
| Operating Modes |
3G/4G Router, Wireless Router |
| WAN Type |
Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
| Management |
Access Control, Local Management, Remote Management |
| DHCP |
Server, Client, DHCP Client List, Address Reservation |
| Port Forwarding |
Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS |
DynDns, NO-IP |
| VPN Pass-Through |
PPTP, L2TP, IPSec |
| Access Control |
Parental Control, Local Management Control, Host List,
Access Schedule, Rule Management |
| Firewall Security |
DoS, SPI Firewall, IP Address Filter/Domain Filter,
IP and MAC Address Binding |
| Protocols |
Supports IPv4 and IPv6 |
| Guest Network |
2.4GHz guest network x 1, 5GHz guest network x 1 |
| IPSec VPN |
Supports up to 10 IPSec VPN tunnels |
| OTHERS |
| Certification |
CE, FCC, RoHS |
| Package Contents |
AC750 Wireless Dual Band 4G LTE Router, Archer MR200
RJ45 Ethernet Cable
Power Adapter
Quick Installation Guide
Micro to Standard SIM Card Adapter
Nano to Standard SIM Card Adapter |
| System Requirements |
Microsoft Windows 98SE, NT, 2000, XP, Vistaв„ў or Windows 7, 8, 8.1, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 browers or higher,or other Java-enabled browsers
SIM Card |
