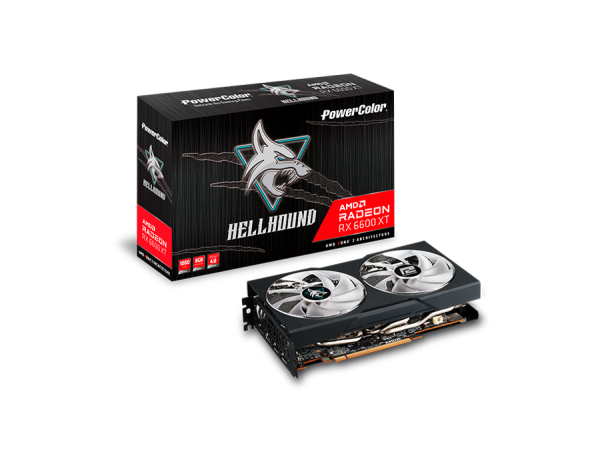

NEW PowerColor AMD Radeon RX 6600XT 8GB GDDR6 Dual Fan Blue LED PCI-E Video Card

SPECIFICATION

Graphics Engine                AXRX 6600XT 8GBD6-3DHL/OC

Video Memory 8GB GDDR6

Stream Processor            2048 Units

Engine Clock(OC)             up to 2382MHz(Game)

up to 2593MHz(Boost)

Engine Clock(STD/Silent)              up to 2359MHz(Game)

up to 2589MHz(Boost)

Memory Clock   16.0 Gbps

Memory Interface           128-bit

DirectX® Support             12

Bus Standard     PCIE 4.0

Standard Display Connectors      1 x HDMI 2.1 , 3 x DisplayPort 1.4

Customized Specifications

Product Remark               'Game Clock' is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.

'Boost Clock' is the maximum frequency achievable on the GPU running a burstyworkload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to:thermal conditions and variation in applications and workloads.

Feature Support

OpenGL               Support

CrossFireX™ Technology               support (DirectX® 12/Vulkan™)

AMD Stream Technology              Support

AMD Eyefinity Technology           Support

AMD Hypermemory

Maximum Resolution

VGA

DVI

DisplayPort         7680×4320

HDMI    7680×4320

Power Specs + Board Dimensions

Board Dimensions           220mm*132mm*45mm

Minimum System Power requirement (W)          500W

Extension Power Connector       One 8-Pin PCI Express Power Connector
