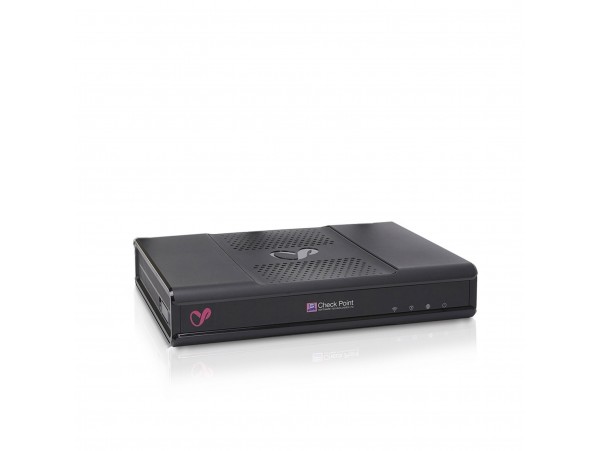

CHECK POINT SG1530 SECURITY switch + 3 YEAR NGTP subscription Premium support

CPAP-SG1530-NGTP-SS-PREM-3Y – 3 YEAR 1530 appliance with NGTP subscription package and Direct Premium support for 3 years

Enterprise Testing Conditions

Threat Prevention (Mbps) 1

300

Next Generation Firewall (Mbps) 2

800

IPS Throughput (Mbps) 900

Firewall Throughput (Mbps) 1,000

RFC 3511, 2544, 2647, 1242 Performance (LAB)

Firewall 1518 Byte UDP Packets (Mbps) 2,000

VPN AES-128 Throughput (Mbps) 1,300

Connections per Second 14,000

Concurrent Connections 500,000

Software

Security

Firewall, VPN, User Awareness, QoS, Application Control, URL Filtering, IPS, Anti-Bot, Antivirus, Anti-Spam and

SandBlast Threat Emulation (sandboxing)

Unicast, Multicast Routing OSPFv2, BGPv4 and 4++, RIP, PIM (SM, DM, SSM), IGMP

Mobile Access License (Users) 100

Hardware

WAN Port 1x 10/100/1000Base-T RJ-45 port

LAN Ports 5x 10/100/1000Base-T RJ-45 ports

Radio Band (association rate) 3x3 Dual band 2.4/5GHz, 11n/ac non-concurrent

Radio Band (association rate) One radio band non-concurrent: 2.4GHz (max 450 Mbps) or 5GHz (max 1,300 Mbps)

Console Port 1x USB-C

USB Port 1x USB 3.0

Dimensions

Enclosure Desktop, wall mount

Dimensions (W x D x H) 210 x 160 x 37.5 mm, 8.3 x 6.3 x 1.5 in.

Weight 0.43 kg (0.95 lbs.)

Environment

Operating / Storage 0ºC ~ 40ºC / -45ºC ~ 60ºC (5~95%, non-condensing)

Power Requirements

AC Input 110 – 240VAC, 50 – 60 Hz

Power Supply Rating 12V/3.3A 40W power adapter

Certifications

Safety/Emissions/Environment

UL/c-UL 62368-1 , IEC 62368-1 CB / EMC, EMI EN55024, EN55032 Class B, VCCI, AS, NZS CISPR 32, IC ICES 03, RSS247,

FCC: Part 15 Class B, C, E / RoHS, REACH, WEEE
