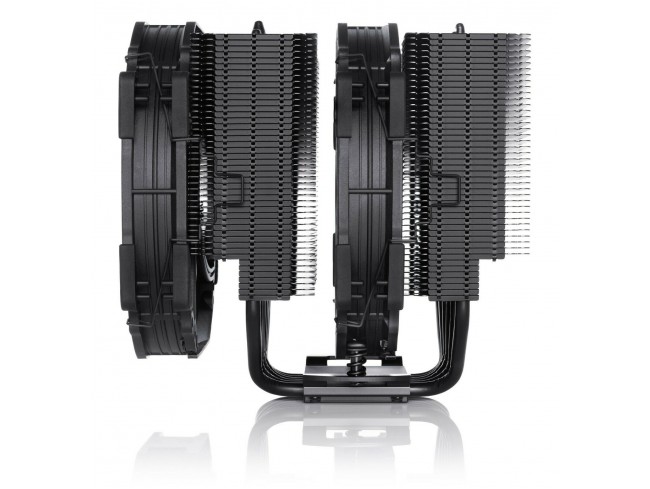

Noctua NH-D15 CPU Cooler Heatsink Intel LGA2066/2011/1151/1200 AMD

Product Code: 264745931026

Availability: In Stock

Price: $116.90

Cooler Specification

Socket compatibility Intel LGA2066, LGA2011-0 & LGA2011-3 (Square ILM), LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 & AMD AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+ (backplate required), AM4

Height (without fan) 160 mm

Width (without fan) 150 mm

Depth (without fan) 135 mm

Weight (without fan) 980 g

Height (with fan) 165 mm

Width (with fan) 150 mm

Depth (with fan) 161 mm

Weight (with fan) 1320 g

Material Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating

Max. TDP see CPU compatibility list

Fan compatibility 140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25

Scope of delivery

Black NH-D15 heatsink

2x NF-A15 HS-PWM premium fan

2x Low-Noise Adaptor (L.N.A.)

4-pin PWM Y-cable

NT-H1 high-grade thermal compound

Black SecuFirm2™ Mounting Kit

Noctua Metal Case-Badge

Warranty 6 Years

FAN Specification

Model 2x Noctua NF-A15 HS-PWM

Bearing SSO2

Max. rotational speed (+/- 10%) 1500 RPM

Max. rotational speed with L.N.A. (+/- 10%) 1200 RPM

Min. rotational speed (PWM, +/-20%) 300 RPM

Max. airflow 140,2 m³/h

Max. airflow with L.N.A. 115,5 m³/h

Max. acoustical noise 24,6 dB(A)

Max. acoustical noise with L.N.A. 19,2 dB(A)

Voltage range 12 V

MTTF > 150.000 h
