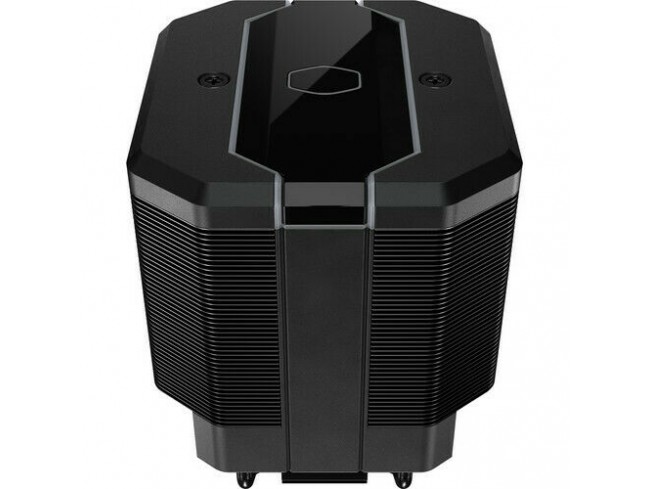

Cooler Master MasterAir MA620M RGB CPU Cooler DUAL TOWER HEATSINK LGA1200 AMD

DUAL TOWER HEATSINK

A combination of 2 sets of heatsink allows bigger and more spread out surface area. The black paint enhances radiation cooling performance

6 Heatpipe Array

6 HEATPIPE ARRAY

Enhanced thermal conductivity and uniform layout distributes heat over more evenly across heatsinks

Easy Mounting System

EASY MOUNTING SYSTEM

Exclusive All-In-One mounting design for easy installation

The New SF120R Fan

THE NEW SF120R FAN

with silent driver IC and a wide range of speed settings, it can be used for silent operation or fine-tuned for maximum cooling performance

Addressable RGB Led Controller

ADDRESSABLE RGB LED CONTROLLER

The wired Addressable RGB LED Controller allows for customizable colors and effects with just the touch of a button. software

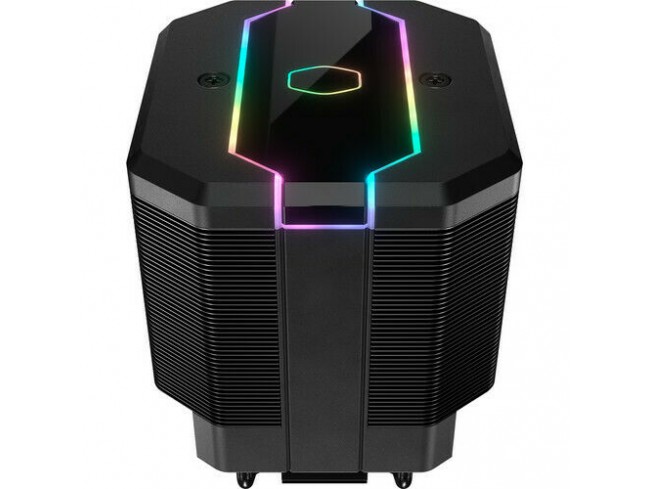

LIGHTING BADGE

The Cooler Master hexagon logo and embedded Addressable RGB lighting strip provides unique perspective light effect

SPECIFICATIONS DOWNLOADS

PRODUCT NUMBER

MAM-D6PN-120PA-R1

CPU SOCKET

LGA2066, LGA2011-v3, LGA2011, LGA1200, LGA1151, LGA1150, LGA1155, LGA1156, AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1

DIMENSIONS (L X W X H)

135 x 125 x 165 mm / 5.3 x 4.9 x 6.5 inch

HEAT SINK MATERIAL

6 Heat Pipes, Aluminum Fins

FAN DIMENSIONS (L X W X H)

120 x 120 x 25 mm / 4.7 x 4.7 x 1 inch

FAN QUANTITY

1 PCS

FAN SPEED

650-2000 RPM (PWM) ± 10%

FAN AIRFLOW

57.3 CFM (Max)

FAN AIR PRESSURE

2.0 mmH2O (Max)

FAN MTTF

160,000 Hours

FAN NOISE LEVEL

8 - 30 dBA

FAN POWER CONNECTOR

4-Pin (PWM)

FAN RATED VOLTAGE

12VDC

FAN RATED CURRENT

0.16A

FAN SAFETY CURRENT

0.37A

FAN POWER CONSUMPTION

1.92W

WARRANTY

5 years

SERIES

MasterAir

COOLER TYPE

Air Cooler

HEATPIPES

6
